- Hign-concerned Chemical: None
- Operating Mode: Auto
- Measuring Capacitance Range: 0nF~100mF
- DIY Supplies: ELECTRICAL
- Measuring Resistance Range: 0Ohm~60MOhm
- Origin: Mainland China
- Model Number: ANENG 681 Digital Multimeter
- Brand Name: ANENG
- DC Current: 0~10A
- AC Current: 0~10A
- DC Voltage: 0~1000V
- Display Type: Digital display
- ANENG Model: 681
- AC Voltage: 0~750V

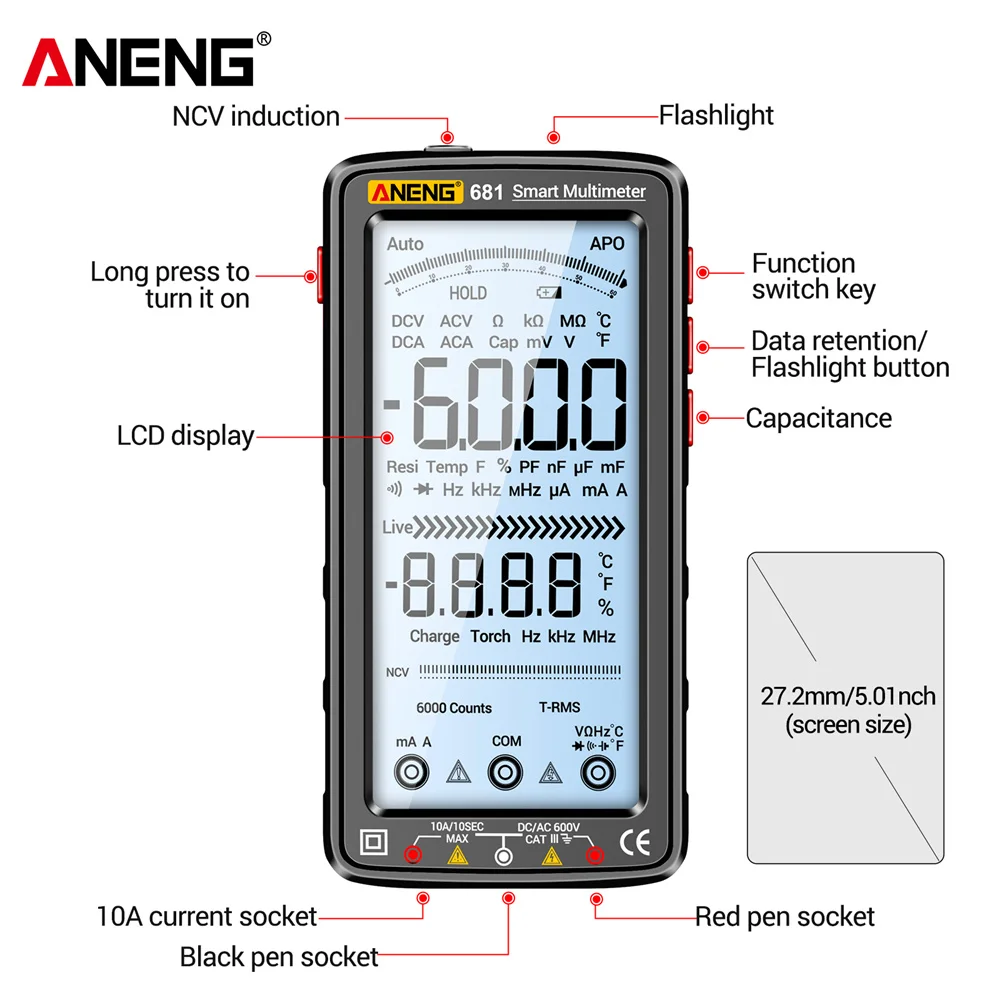

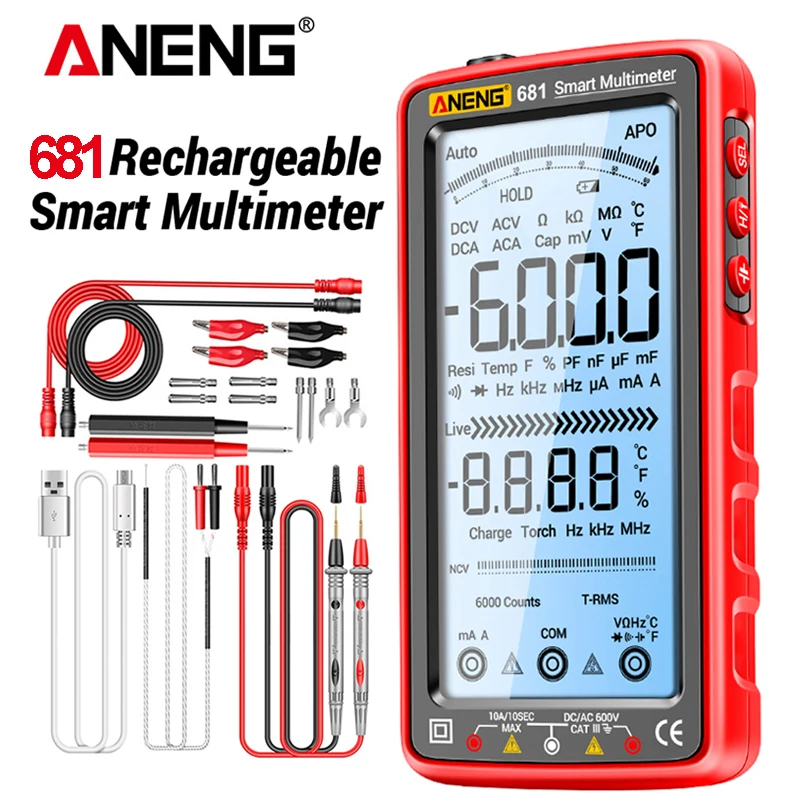

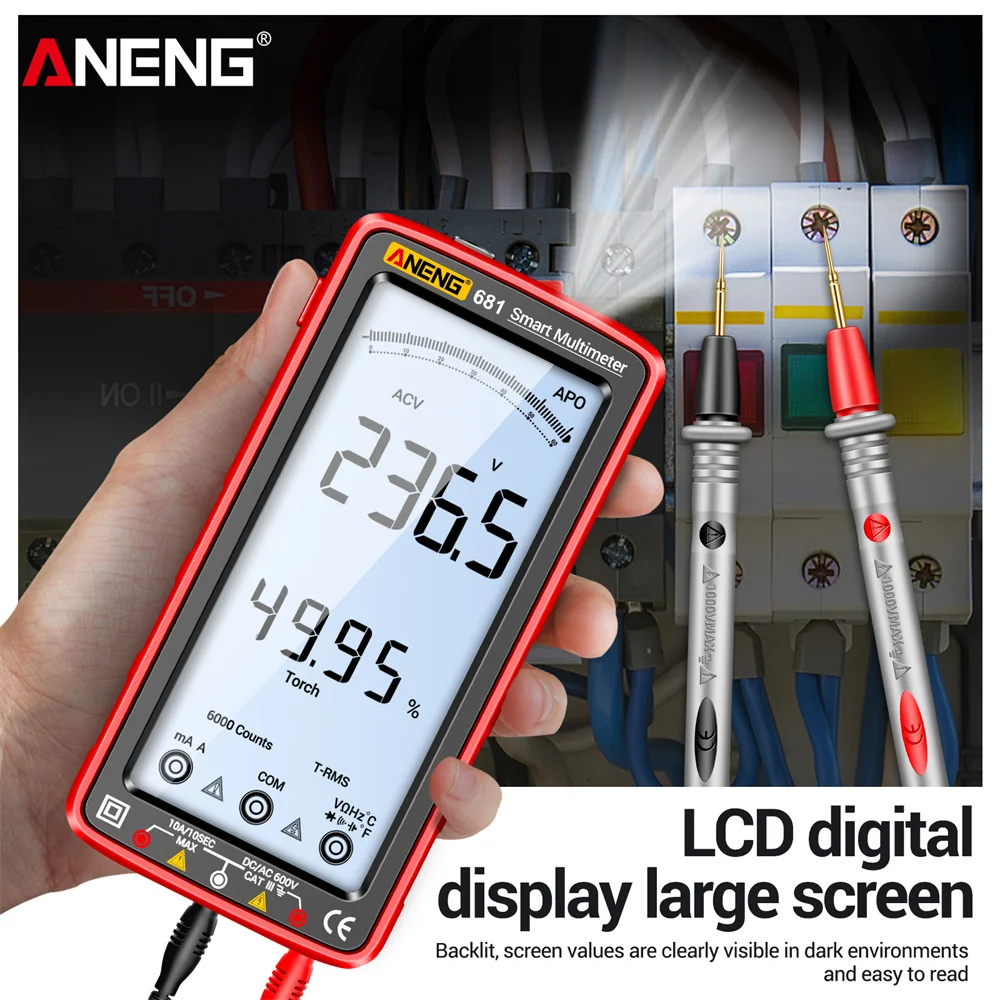

ANENG 681 large LCD screen.
Description:
This product is a 3 5/6 digital multimeter with stable performance and reliable quality. The meter adopts LCD display screen with analog bar display.
681 is a 6000 count pocket type true effective value automatic scanning digital meter.
681 automatically recognizes and measures according to the different input voltage/current/resistance/etc. signals.
681 has the characteristics of stable performance, high precision and clear reading.
681 also has additional convenient functions of flashlight test.
681 is an ideal tool and instrument suitable for factories, teaching and electronic enthusiasts.
Feature:
|

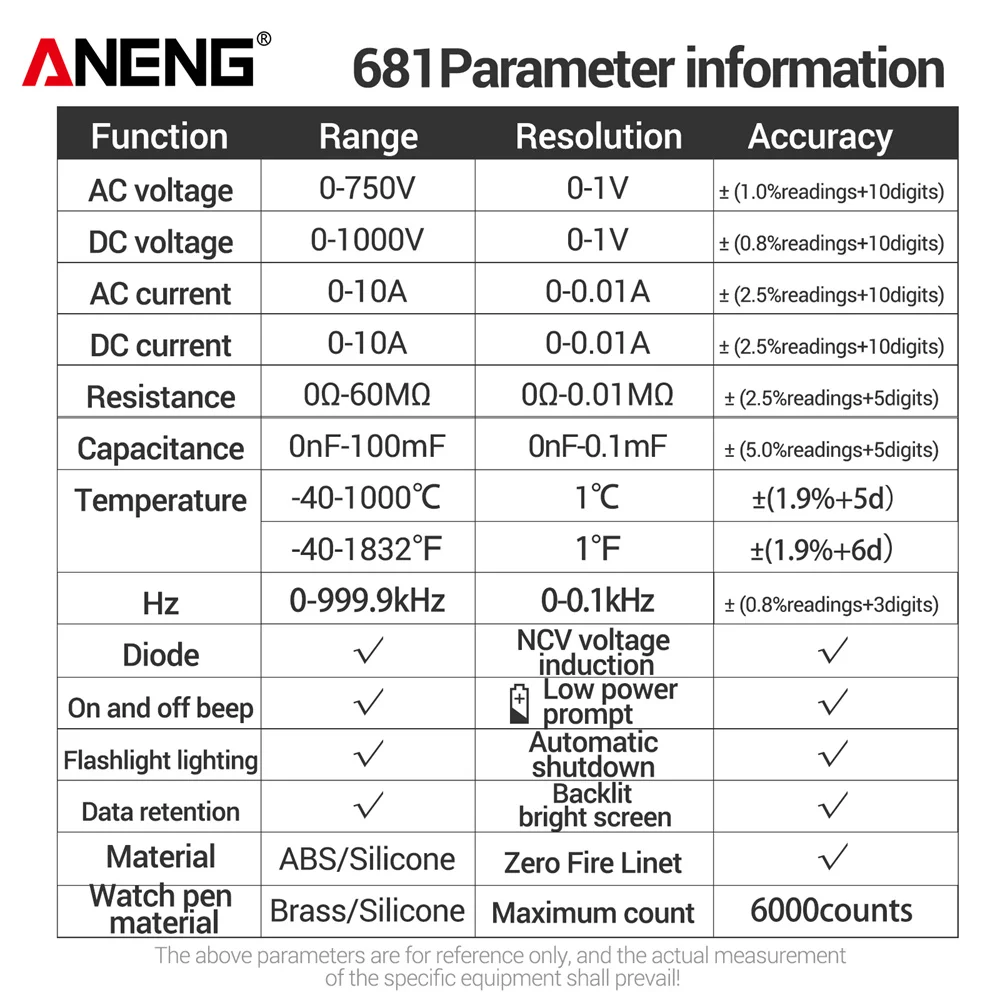

681 |
|||
|
Function |
Range |
Resolution |
Accuracy |
|
DC voltage |
0~1000V |
0~1V |
±(0.8%+10) |
|
AC voltage |
0~750V |
0~1V |
±(1.0%+10) |
|
AC current |
0~10A |
0~0.01A |
±(2.5%+10) |
|
DC current |
0~10A |
0~0.01A |
±(2.5%+10) |
|
Capacitance |
0nF~100mF |
0nF~0.1mF |
±(5.0%+5) |
|
Resistance |
0Ω~60MΩ |
0Ω~0.01MΩ |
±(2.5%+5) |
|
Temperature ℃ |
-40 ℃~1000℃ |
1℃ |
±(1.9%+5d) |
|
Temperature °F |
-40°F~1832 °F |
1°F |
±(1.9%+6d) |
|
Hz |
0-999.9 kHz |
0~0.1 kHz |
±(0.8%+3d) |
|
Diode |
√ |

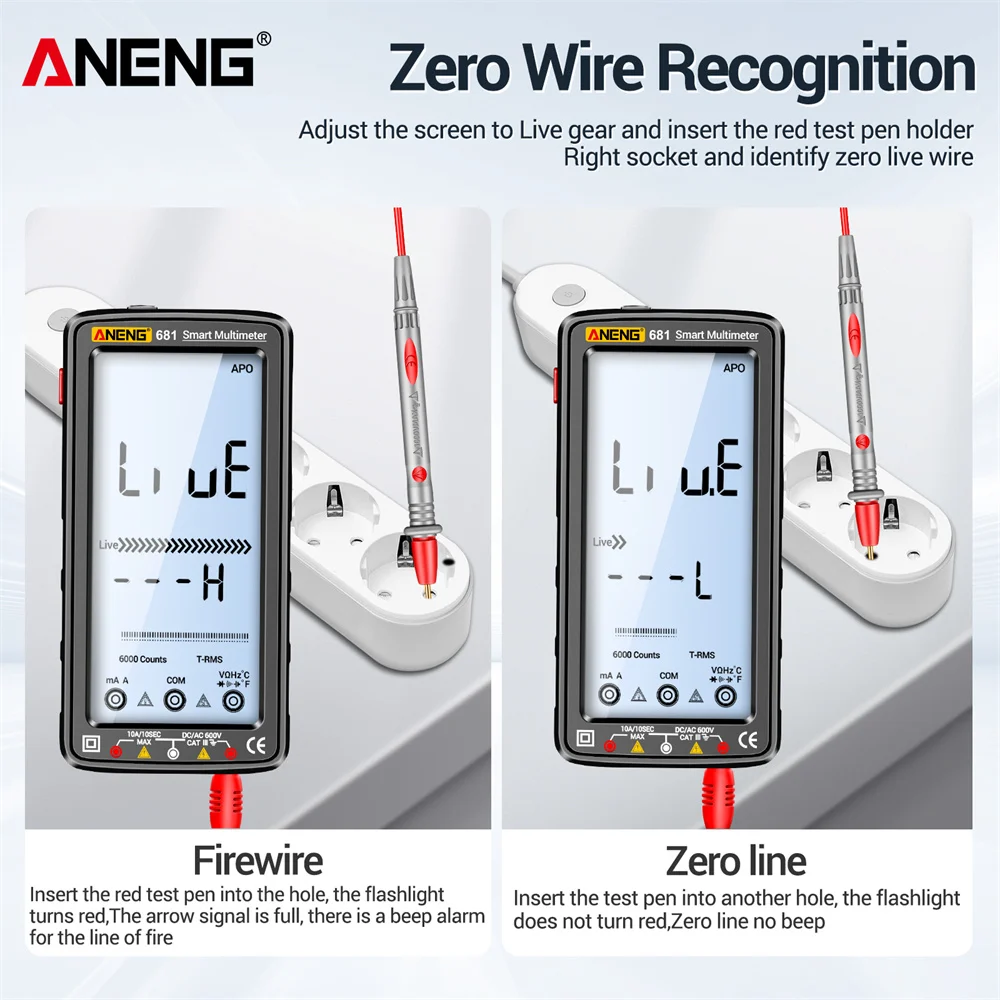

NCV voltage induction |
√ |
|
On-Off beep |
√ |
Low power prompt |
√ |
|
Auto shut-down |
√ |
Flashlight |
√ |
|
Keep data |
√ |
Backlit bright screen |
√ |
|
Material |
ABS/ Silicone |
Zero Fire |
√ |
|
Watch pen material |
Brass/Silicone |
Silicone sheath |
√ |
|
Charging line |
√ |
With a stylus |
√ |
|
Test leads |
according to the choose |
Temperature line |
√ |
|
Model |
681 |
Max Count |
6000 Counts |
|
Product Size |
150.8*74.8*23.8 mm/5.94*2.94*0.98 inch |
||
Packing List:
According to your choose
